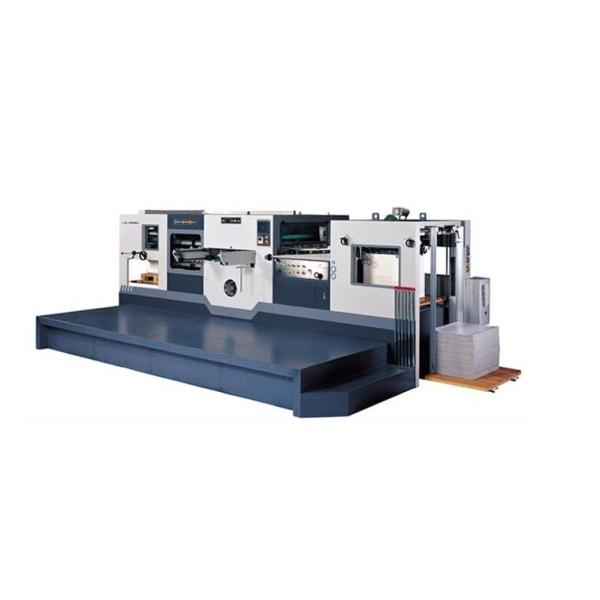

    1020H Completely 380V Automatic Die Cutting Equipment and Creasing Machine

    Ask Lasest Price
    Brand Name : Diamond
    Model Number : 1020H
    Certification : SGS
    Price : US $ 80,000 - 100,000 / set
    Payment Terms : L/C, T/T
    Supply Ability : 2 sets every month
    Delivery Time : Within 45 days
    • Product Details
    • Company Profile

    1020H Completely 380V Automatic Die Cutting Equipment and Creasing Machine

    1020H Completely 380V Automatic Die Cutting Equipment and Creasing Machine

    Specifications

    Auto Diecutting and Creasing, accurate feeding and position, with or without auto striping, stable, speed max. 7000/hour

    Main Features:

    · Adopt programmable controller,and it is incorporated with fully automatic feeding,diecutting,delivery,obstacle indicating,checking and measuring
    · interface is used to monitor all kinds of trouble,which contributes to easy trouble shooting and operation.
    · Using unique cam intermittent construction designed by computer,which ensuring diecutting precision and gripper bars processing stability.
    · The driving chain for gripper bar is imported from IWIS,Germany,ensuring precision and life
    · The main driving bearing is imported from NSK Japan.
    · The main motor is controlled by transducer,which achieves stepless speed regulation and smooth operation.
    · PLC,Transducer and all kinds of electric sswitch are imported from FUJI,YASKAWA,and OMRON of JAPAN

    Specifications

    Max. Paper Size1020×720mm
    Min. Paper Sze400×360mm
    Max. Cutting Size1010×710mm
    Max. Cutting Speed>6000s/h
    Diecutting Precision±0.1mm
    Max. Pressure250T
    Max. Feeding Pile1100mm
    Max. Delivery Pile1040mm
    Sheet ThicknessCardboard 100-2000g/m2 Corrugated paper ≤4mm
    Net Weight13T
    Total Power16.82Kw
    Overall Dimensions4500×2545×1900mm
